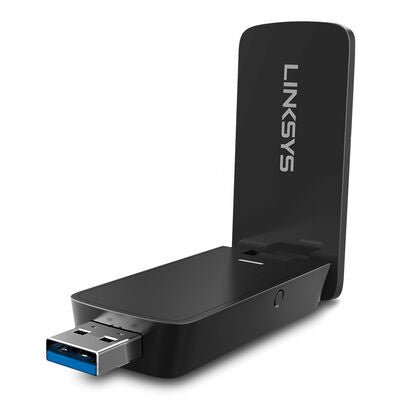

| LED Color |
State |
Trigger |
LED Activity |
| N/A |
OFF |
User unplugged the device or the device has no power |
OFF |
| White |
Not Associated |
The device has power and the driver has been installed but is not connected to a Wi-Fi network |
Blinking (One (1) second ON; One (1)
second OFF) |
| White |
Associated / Successful WPS Pairing |
Connected to the wireless
network / Handshake
successfully completed |
Solid |
| White |
Transmit (TX) / Receive (RX) |
Connected to the wireless network and has RX or TX activity |
Solid |
| Orange |
Device
Listening / Negotiating |
User pressed the WPS button; The router and the client device is
establishing a connection |
Blinking (One (1) second ON; One (1)
second OFF). Continues
until pairing succeeds, or when the two-minute period elapses when pairing fails |
| Orange |
Pairing Failure |
Unable to connect to the client device |
Blinking (One (1) second ON; One (1) second OFF) state persists for 15 seconds, then rolls to unassociated or associated state |
